Welcome to N4PY Software
Customer Service Second to None

Rig Control               Rotator Control
Amplifier Control         Logging       Station Integration
Panadapter Integration


PLEASE NOTE N4PY SOFTWARE HAS ABSOLUTELY NO CONNECTION WITH PEGASUS SPYWARE FROM ISRAEL


When you purchase from N4PY Software you get full email  assistance from Carl.  I always make every effort to respond to your questions within 2 hours if at all possible.  N4PY Software is the leader in full station automation.  If you are unsure of how to setup anything in your station, please ask me.  Ham radio is my passion.

Please send all emails for me to n4py at arrl.net.  Substitute @ for at.

 A single purchase of any N4PY control program will get you a lifetime license for all three N4PY control programs. This includes all new versions that come out within the first year of your purchase.  Also a $30 renewal of any
N4PY Control program will get you a renewal subscription
for all three control programs after the first year.

All N4PY Software will run for 10 days without a password for you to try out.

All N4PY Software runs very well with Linux using the WINE Windows emulator.



Pegasus Plus now supports the Elecraft K4 Ethernet Interface
Pegasus Plus now supports the Yaesu FT101D and FT101MP
Pegasus Plus now supports the Yaesu FTDX10

Pegasus Plus now supports the Kenwood TS-890S


Pegasus Plus now supports the Expert MB1 and SunSDR Radios Using Ethernet

All programs can be resized by changing the Scale parameters in Preferences3

N4PY Software is your source for high quality, effective rig control software for your transceiver.  N4PY offers rig control software for a wide variety of receivers from the Elecraft K3 to the Ten Tec RX 320 receiver.  N4PY Software has been in existence since 1999. There are many reviews of this software on Eham.   All N4PY Software will run for 10 days without a password. Just download the software you are interested in to get a 10 day free trial.   And don't hesitate to ask any questions you might have by sending an email to me.

When you purchase N4PY software, you can install the program on all your own computers for your own use.
The license is for you and not your computer.  The software that you purchase will run forever with no time limit.  Your initial purchase includes all program upgrades for 1 year.  If you want additional upgrades after 1 year, it is just $30 a year for upgrades.  If you skip several years and then want the latest upgrades, it is still only $30 to get the
latest version upgrade.

N4PY software is more than just a rig control program.  It is also is a major equipment integrator.  If you want to use Tmate2 or FlexControl or Behringer DJ controller and autotuners and amps and four or five different panadapter programs and winkeyer, then N4PY software is your only choice.

All N4PY software programs run on windows operating systems Windows XP, Vista, Windows 7, Windows 8, 8.1 and 10 (including the 64 bit versions of XP, Vista, and Windows 7, 8 and 10).  I have older versions on the "previous versions" page that will run on Windows 95, 98, ME, and 2000.

N4PY supports the following main radios:
Elecraft K4, K2, K3, KX3, KX2 (Pegasus Plus)

Kenwood TS-850, TS-950, TS-570, TS-870, TS-480, TS-590, TS-2000, TS-990, TS-890 (Pegasus Plus)

Yaesu FT-450, FT-950, FTDX-101D, FTDX-101MP,  FT-1200 series, FT-2000 series, FT-3000 series, FT-5000 series, FT-9000 series, FT-991, FT-891, FTDX-10 (Pegasus Plus)

Kachina 505DSP (Pegasus Plus)

Tentec Orion I, Orion 2, Omni VII, Eagle, Pegasus, Jupiter, RX-320, RX-330, RX-331, RX-340, RX-350, RX-400, Argonaut V, Argonaut VI (Orion and Pegasus Plus), Omni VI (Icom), and Omni V.9 (Icom)

Icom IC-756PRO,  IC-756PROII, IC-756PROIII, IC-706MKIIG, IC-746, IC-746PRO, IC-703, IC-775, IC-756, IC-718, IC-781, IC-7000, IC-7100, IC-7200, IC-7300, IC-7600, IC-7610, IC-9100, IC-7410, IC-7700, IC-7800, IC-705, IC-7850, and IC-7851,

Flex 6300, 6400, 6400M, 6500, 6600, 6600M, 6700, 6700R, 5000, 3000, 1500, SDR-1000, All Flex 6000 radios support MultiFlex (Pegasus Plus)

ANAN 10, 100, 100D,  200, 7000, 8000, via PowerSDRmrx (Pegasus Plus)

Expert MB1, SUNSDR Pro, SUNSDR2, Now with both ExpertSDR2 and ExpertSDR3 support        (Pegasus Plus)

Rohde & Schwarz XK2000 series and EK-890 (Pegasus Plus)

N4PY supports the following radios as second receivers to be used as a sub-receiver to the primary radio with the sub-receiver following VFO B. -
RX-320, RX-350, second Pegasus, second Jupiter, or second Elecraft K2 (Pegasus Plus)


Also any two radios that N4PY supports can be run in different N4PY instances and linked together so that one is a sub-receiver to the other.

N4PY supports this equipment sending  data from the radio -
Acom 2000, Alpha 87A, KPA500, Tokyo HL-1.5KFX Amp, SPE Expert Amplifiers, AT-Auto Autotuner, LP-Pan, WaveNode, Steppir, LP-100a, LP-100, Up to 5 transverters.


N4PY interfaces with these Panadapters sending and receiving data from the receiver -
SDRplay, RFSpace SDR-IQ, Hermes, Microtelecom, Perseus

Also any Panadapter radio that works with the following panadapter programs will work well with N4PY -
NaP3,  PowerSDR,  PowerSDRmrx, TRX-Pan, HDSDR



New Features now available
Added Ethernet control for tuner setup for Elecraft KPA1500.  This eliminates the need to transmit a dit to setup the tuner.
Now have ExpertSDR3 support for SunSDR radios.
Added support for Icom IC-705.
Added support for the Numark DJ2GO2 Touch DJ Controller. This device is much smaller than the Behringer devices.

Added support for automatic UDP frequency selection for the B26 RF-KIT Amplifier.
Added support for Expert MB1 and SUNSDR radios.

All N4PY control programs have 5 built in Virtual Radios, each of which works just like a
   Kenwood radio.  This allows sharing of the radio comport with up to 5 other applications.

Added the Hercules DJ Controller MP3 E2 as a supported DJ controller.
Added support for the Telepost LP-500 and LP-700
Added support for automatic band selection on Yaesu Quadra VL-1000 Amp so this amp
   can be used with any radio I support, not just Yaesu.
Added support for the Denkovi USB 8 relay board. This can be used for antenna control.
Added the Behringer Studio 2A DJ Controller as a new knob device.
Added the Behringer CMD Micro DJ Controller as a new knob device.
Added support for the IC-7300 to the N4PY Icom program.
Added the Elecraft KX2
Added the Yaesu FT-991 Transceiver.
Full support now available for the Array Solutions PowerMaster watt meter including client-server
function for this fine watt meter.  Send me an email for more info on this.
Full support for the Flex Radio 6000 series without using SmartSDR CAT.  This means any slice receiver can be controlled, not just slice A and slice B.
Added full support for the Kenwood TS-990.

The KX3 IQ outputs can be used with NaP3 for a full panadapter with no additional hardware.
Pegasus Plus now has full support for Rohde & Schwarz XK2000 series and EK-890.
Tentec Argonaut VI and Eagle fully supported in the N4PY Orion program.
All programs now have support for the Perseus receiver as a Panadapter.
All programs now have a total of five external comports to allow panadapters, CWSkimmer,
and external logging programs to run at the same time without LP Bridge.
All programs now have a method for receiving CW characters from contesting programs.
This is most useful when running a client-server setup.

The Icom program now has full support for a standalone Perseus receiver.
All programs now have support for the RFSpace SDR-IQ panadapter.
All programs now have rotor support.
All Programs now have support for TRX-Pan with LP-Pan.  This panadapter has a much simpler installation as no virtual comports are required.
The Pegasus Plus program now has support for the ADR2200 antenna switch.
The Pegasus Plus program now has support for the Alpha 87A amplifier.

The Icom program now has full support for the IC-9100 transceiver.
The Pegasus Plus program now supports the Tentec RX-400 HF/VHF/UHF transceiver.
All N4PY software now built with Microsoft Visual Studio C++ 2010.
WaveNode Watt Meter now fully supported.

Remote Mirrored Radio Operation for Two Identical Icom Radios.



Now Available - I now have full support in Pegasus Plus, Icom, and Orion for the Numark DJ2GO2 Touch DJ Controller.  This device has 26 knobs and buttons offering ultimate knob control for your radio.  All the knobs and buttons are fully user definable.  This device is much smaller than the Behringer DJ controllers and is very reasonably priced.

Now Available - I now have full support in Pegasus Plus, Icom, and Orion for the Behringer CMD Micro and Behringer Studio 2A DJ Controller.  These devices have many knobs and buttons offering ultimate knob control for your radio.  All the knobs and buttons are fully user definable.






I now have support for the Denkovi USB 8 relay board.  This board allows you define which relay is energized by frequency.  In this way you can implement auto antenna selection by wiring these relays to control an antenna selector.

These relay boards are very inexpensive and easy to hookup.
See denkovi.com/usb-relay-boards

Announcement - I now have full support for the Woodbox Radio Tmate 2 device.  This device has 3 knobs, 6 function keys, a display, and each of the 3 knobs are also a button.  Each button can be configured to over 60 different functions in each N4PY program.  This device does not have the classic focus problem.  The N4PY program always has control over this device regardless of which program has the keyboard focus.

Click here to go to the Tmate 2 website


Now Available - Finally a pod knob that will work with all radios and does not have the classic focus problem.
All N4PY programs now have support for a knob that has 4 buttons and will provide excellent tuning knob action.  This knob can be used with ANY radio that N4PY can control.  This  includes the Elecraft K3, K2, all Icom radios, some Yaesu radios, and Tentec radios.  This knob can be configured for over 30 different actions.  And this knob can control the radio even when the N4PY program does not have the focus.  This will greatly improve Remote operation and those persons that wish to have a
tuning knob on their desk. The knob can control VFO A, VFO B, RIT, PBT, Volume, and many other things.

You can purchase this knob on the Flex radio website at www.flex-radio.com.  Go to the Online Store and select "Accessories" to find it.  N4PY Software has no connection with Flex Radio.

N4PY Knob Instructions



DX Patrol

I have found a really nice SDR radio to use as a panadapter.  It is DXPatrol from Vibroplex.  This SDR radio covers 100 khz to 2 GHZ and works extremely well as a panadapter radio.  The best part is it is only $99 and does not need a sound card to work as a panadapter.  I am running it with HDSDR free software and this integrates well with all my software.  You run this radio either with a separate receive antenna or share the same antenna with your transceiver.  Many radios have easy ways to share the antenna such as the Icom 7600, Tentec Orion, Tentec Omni VII, just to name a few.  If you get this SDR radio, send me an email and I will give my HDSDR setup for the radio.   Link for DXPatrol

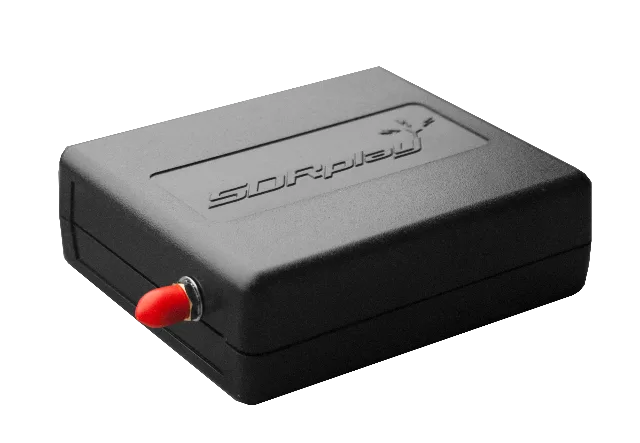

     SDRplay Receivers


The SDRplay receivers are really nice SDR radios to use as a panadapter.  They work extremely well as a panadapter radio.    I am running it with HDSDR free software and this integrates well with all my software.  You run this radio either with a separate receive antenna or share the same antenna with your transceiver.  Many radios have easy ways to share the antenna such as the Icom 7600, Tentec Orion, Tentec Omni VII, just to name a few.  If you get this SDR radio, send me an email and I will give my HDSDR setup for the radio.    Link for SDRplay





Client-Server Now Available in all N4PY Products.
This feature allows you to run two copies of the N4PY program in a local
and remote computer that communicate with each other for remote operation.


N4PY Client-Server Advantages -
- smoother and faster than remote desktop applications
- logging directly at the operator's computer
- will automatically stop transmit if the Internet connection is lost
- more control of the screen view of the N4PY program on the operator's computer
- send CW from the operator's computer using keyboard or paddles


Read Client-Server Manual.




DXSPOTS - This is a DX Spots tracker. The program will track your DXCC totals by band, mode and overall. In addition, the program provides a simple logger to track your QSOs. You can upload .adi log files.

Omni V Chips

Paragon Chips



WB4HUC provided an interesting YouTube Video of using Pegasus Plus with the Omni VII and several other devices.  Click here to see it.

WB4HUC also has a great video on CW usage.  Click here to see it.



Click here for YouTube Demonstration by K1ESE

Supported Operations
All N4PY programs have support for the Telepost LP-100A watt meter, LP-500, LP-700 and also the Telepost
LP-Pan panadapter.  See www.telepostinc.com for information of these products.

N4PY programs fully support the LDG AT-200PC Autotuner.
By using this tuner, tuning your antenna has never
been easier. This allows the program to recall tuner settings
when going to a new band without the need to transmit.

N4PY programs fully support the Palstar AT-Auto tuner.
The N4PY program will keep this tuner up to date on the current
frequency to allow the tuner to set its tuner values without
the need to transmit.

N4PY programs fully support the LDG DTS-4 and DTS-6 coax
antenna switch via serial port control. This means my program
will automatically select each antenna position via frequency ranges
that you define for each antenna switch position. There is also a
simple way to manually select antenna positions via a mouse click.

N4PY programs fully support the Tokyo High Power Amplifier HL-1.5KFX.
Regardless of what radio you are actually running, my program will send
Kenwood commands to this amplifier through a second serial port. This
allows full automatic band switching for the amplifier even with Tentec
radios.

N4PY programs fully support the SPE Expert Amplifiers.  The program make
it so that you never make a mistake and overdrive these amplifiers.
Regardless of what radio you are actually running, my program will send
Kenwood commands to this amplifier through a second serial port. This
allows full automatic band switching for the amplifier regardless of what radio
you are actually using.  And if you configure the amp for a Flex radio, my
program will receive the drive level messages from the amp and you will always
have the correct drive level.

N4PY programs support the Acom 2000 Amplifier. As you change frequencies
on your radio, the Acom 2000 will automatically tune itself to the new frequency without
the need to transmit.

N4PY programs fully support the K1EL winkey and winkey II keyer.

Band buttons - There are 9 CW band buttons, 9 SSB band buttons,
and 11 SWL band buttons.  The SWL band buttons can be redefined to
any frequency range you desire.  Some make these be digital band
buttons.  No other program has this.

Full TenTec remote tuning pod programability - You can define each
of the 18 buttons on the TenTec remote tuning pod for over 30
different functions for the tuning knob.

Full tuning pod emulation -  You can emulate a tentec remote tuning
pod with the PC keyboard F keys and the mouse wheel.  You can even
even define an F key as an "UP" key for instant split.  If the
DX station suddenly announces he is listening up 5, all you do
is press the "UP" key followed by a 5.  This instantly makes VFOB
be VFOA plus 5 khz and turns on split.

Radio memory save to a file and restore from a file - Most radios
have a way for the program to save and restore memories.  This allows
easy setup of radio memories.

Amptune feature allows saving amplifier drive setting for each
band segment.  And when you use this feature to tune your amp,
the program automatically moves the radio up 5 khz and then moves
it back when the tune is complete.

Automatic 10 minute CW ID.

Calibrate - You can calibrate your radio so that the program displayed
frequency is very accurate.

Very flexible Transverter support - The program allows up to 7
transverters to be user defined.  You can specify the drive level,
frequency range, and IF frequency for each transverter.  This allows
the program to always display the actual operating frequency and
you don't have to worry about forgetting to lower your drive.

Unique control of Sub-receiver - For radios that have a sub-receiver,
right clicking on most buttons sets the values in the sub-receiver
for that button function.

Right click on "Split" button to set repeater offset - For FM mode
right clicking on the split button will set the normal split offset
for the current operating frequency.

Panadapter support - Any Flex radio, the RFSpace SDR-IQ, HDSDR
controlled radio,  or the Perseus receiver can becombined with your
radio for perfect Panadapter operation.  Also,a panadapter radio,
contest logging program, and CW Skimmer can allbe configured to
run with the program at the same time.

Program will not allow you to transmit outside your license class.

Band edge lines between CW and SSB can be moved to allow for Foreign
operation and make the band edges match the countries operating
privileges.

Full CW keyboard operation with 5 CW memories.

Kenwood, Yaesu, and K3 voice recorder operation.

User defined default filter, AGC, and step size for each mode.

Frequency event timer to allow the frequencies to be set at
specific times and days of the week.

Compatible with TopTen devices parallel port for automatic antenna
changing by band.

Compatible with Steppir

Fully compatible with WriteLog through a unique memory interface.




Custom Software

I am also available for custom software to fit any special requirement you might have.  Send an email to me and describe your special requirement to me.  I can then send you a quote for it.


  • Home
  • Pegasus Plus
  • Orion
  • ICOM
  • DXSPOTS
  • Purchase
  • N4PY Bio
  • Pegasus Download
  • Orion Download
  • ICOM Download
  • DXSPOTS Download
  • Panadapters
  • Previous Versions
  • Test page
